Airace FX6i
The Next Generation GNSS Receiver:
Accuracy and Reliability
OVERVIEW
The FX6i advantage.
Compact size and lightweight
465 g with a 119.5 × 138.5 × 138.5 mm footprint — highly portable for long survey days.
High-precision positioning
RTK accuracy of H: 6 mm + 0.5 ppm / V: 10 mm + 1 ppm, with 1040+ channels and up to 100 km RTK & PPK baseline.
Anyone on the team can use RTK
5-second startup, Bluetooth 5.0 pairing, and an intuitive Airace One workflow — no specialist training required.
EASY SETUP
Up and running in minutes.
Pair over Bluetooth 5.0, configure NTRIP, and start collecting with a 5-second RTK startup.
01
Pair
Enable Bluetooth & connect to the Airace One app
02
Configure
Enter your NTRIP credentials or set as a base station
03
Survey
Collect points with RTK fix in 5 seconds

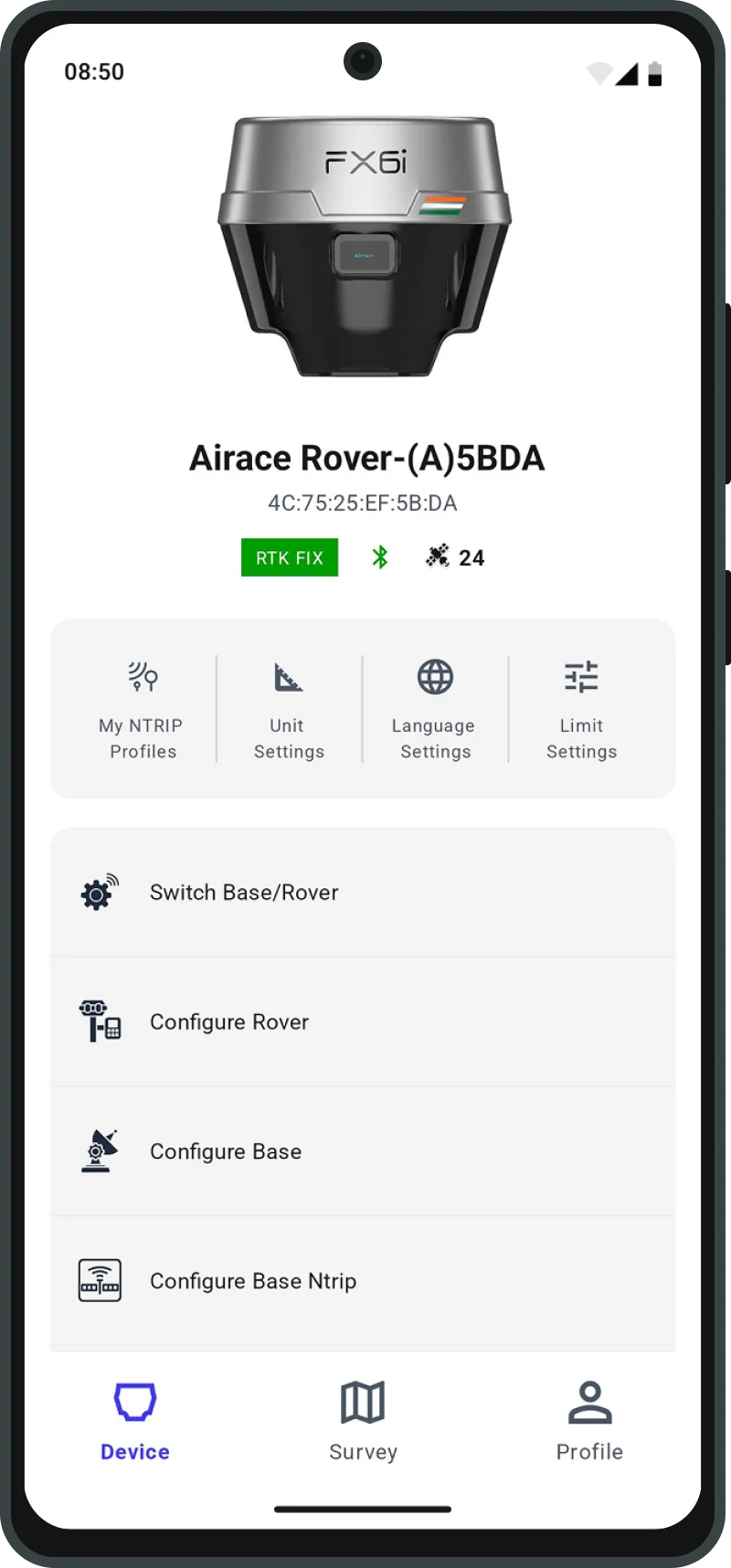

AIRACE ONE APP
Surveying with Airace One.
Save collected points and export to CSV, DXF, KML, and Shapefile formats.
Stakeout, find exact locations of pre-loaded points.
HARDWARE DESIGN
Engineered for endurance.
Built for the field.
The Airace FX6i is designed to eliminate physical fatigue without sacrificing an ounce of reliability. By packing industry-leading performance into an ultra-compact frame, it shifts the burden away from the surveyor.
Portability
An exceptionally small footprint makes it effortless to carry and handle all day on a rover pole.
Weatherproof & Sealed
Completely dustproof and heavily water-resistant to survive sudden downpours and harsh outdoor environments.
Environmental Resilience
Thermally protected and shock-tested to handle extreme temperatures, active job site drops, and rough handling.
TILT COMPENSATION
Smart Tilt Correction. Still Accurate.
The device features a built-in smart leveling system that automatically corrects for pole tilt. This allows you to capture highly reliable points even if your measurement pole is not held perfectly straight. By removing the need to constantly check a physical bubble level, it heavily speeds up your workflow in the field.
ALL-DAY POWER
24 hours RTK. Zero compromise.
15 hr base mode · fully charged in < 4 hr via USB Type-C
RTK rover operation
Li-Ion battery (included)
charge cycles
What Our Users Say
Highly accurate
The Airace FX6i GNSS Receiver offers millimeter level precision that has greatly enhanced our surveying capabilities. The accuracy and reliability of this product have significantly improved our workflow efficiency.
Not sure which receiver fits your workflow?
Compare all Airace receiversarrow_forwardReceiver
- Signal Tracking
- GPS (L1 C/A, L2, L2C, L2E, L2P, L5), GLONASS (L1, L2, L3 C/A, L2P, L3), BeiDou (B1, B2, B2a, B2b, B3), Galileo (E1, E5a, E5b, E5ab, E6), SBAS (WAAS, EGNOS, BDSBAS, MSAS, GAGAN, SDCM), QZSS (L1C/A, L1C, L5, L2C, L6), NavIC (L5, L-Band)
- Channels
- 1040+
- Update Rate
- Up to 20 Hz
- Memory
- 32 GB
- RTK & PPK Baseline
- Up to 100 km
- PPP Positioning
- Any point on Earth
- IMU Positioning
- 9 DOF, calibration-free (0°–60° tilt compensation in RTK mode) ± mm + 0.4 mm/°
- Laser Positioning
- —
Physical
- Dimensions
- 119.5 mm (H) × 138.5 mm (W) × 138.5 mm (L)
- Weight
- 465 g
- OLED Display
- Yes
- Operating Temperature
- -40 °C to +65 °C
- Storage Temperature
- -40 °C to +85 °C
- Water/Dust Proof
- IP67 (waterproof and dustproof)
- Humidity
- 5% to 95% non-condensing
- Dust Test Compliance
- IEC-60529
- Water Intrusion Test Compliance
- IEC-60529
- Vibration/Shock Compliance
- MIL-STD-810F
- Testing Lab
- NABL accredited
Data Format
- RTCM 2.x
- RTCM 3.0
- RTCM 3.1
- RTCM 3.2
- VRS
- NTRIP
- NMEA 0183
- LLH/XYZ
- RINEX
- NMEA
Communication
- Bluetooth
- Bluetooth 5.0
- Wi-Fi
- 2.4 GHz, 802.11 b/g/n
- Network Communication
- 4G via certified Android controller (TDD-LTE/FDD-LTE/WCDMA/GPRS/GSM 900 & 1800 MHz, WCDMA 2100/900 MHz, LTE bands 1, 3, 7, 8, 20)
- USB Type C
- Charging & data transfer
- NMEA Output
- NMEA-0183 over Bluetooth
- Startup Time
- 5 seconds
- Internal UHF
- 1W
- Radio Range
- Up to 5 km
Power
- Battery
- 10,000 mAh Li-Ion (included)
- Operating Period
- 24 hr (Rover) / 15 hr (Base)
- Charging Time
- < 4 hr
Positioning Performance
- High Precision Static
- H: 3 mm + 0.1 ppm / V: 3.5 mm + 0.4 ppm
- Fast Static/PPK
- H: 3 mm + 0.5 ppm / V: 5 mm + 0.5 ppm
- RTK
- H: 6 mm + 0.5 ppm / V: 10 mm + 1 ppm
- Tilt
- RTK + 5 mm + 0.4 mm/° (up to 60°) RMS
- RTK-Network/CORS
- H: 6 mm + 0.5 ppm / V: 10 mm + 1 ppm
- PPP
- 4 cm + 1 ppm or better with Network RT (H + V)
- Laser RTK
- —
- DGPS Accuracy
- H: 25 cm + 1 ppm / V: 40 cm + 1 ppm RMS; SBAS typically < 2 m 3DRMS
